Usage
● This device is mainly used for adults and adolescents in the dilation operation of digestive tract stricture under endoscopes.
Characteristics

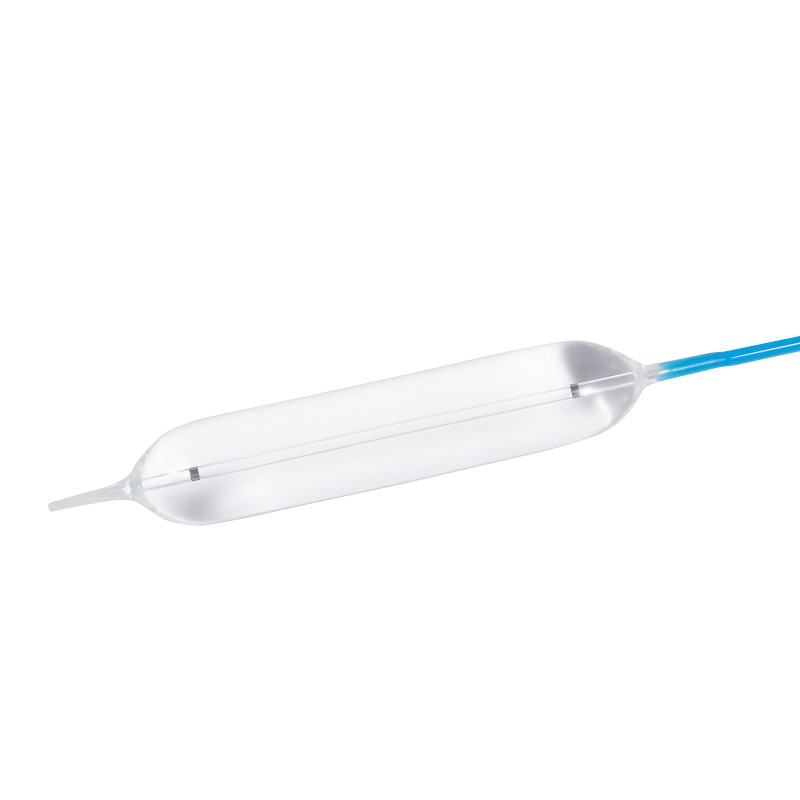

●The 3-stage dilation balloon catheter offers three distinct diameters at three separate pressures, enabling it to achieve three different types of conventional non-compliant balloon dilation effects during in vivo dilation.
●The elastic soft tip design allows for smooth entry into the target position while minimizing tissue damage.
●The rapid drainage design helps to complete the operation more quickly.
●The balloon is crafted from imported material with a thick wall design, ensuring high pressure resistance and safer dilation.
●The balloon features multi-wing pleating and thermostatic shaping, which contribute to its excellent resilience and flexible retreat from the working channel.
●The tube is designed to be smooth and elastic, with strong resistance to twisting and easier passability.
●Radiopaque markers on both ends of the balloon provide precise positioning under X-ray.
● Balloon size and dilation information are clearly marked on the protective sleeve label and device label for easy recognition.
●The product is packaged sterile and is intended for single-use applications.
Specifications(Unit:mm)
|
Model |
Working Channel |
Working Length |
Balloon Diameter |
Balloon Length |
Balloon Dilation |
Guide Wire |
|
TB-28U-A55 |
≥2.8 |
2300 |
06-7-8 |
55 |
03-6-10 |
0.035" |
|
TB-28U-B55 |
≥2.8 |
2300 |
08-9-10 |
55 |
3-5.5-9 |
0.035" |
|
TB-28U-C55 |
≥2.8 |
2300 |
10-11-12 |
55 |
03-5-8 |
0.035" |
|
TB-28U-D55 |
≥2.8 |
2300 |
12-13.5-15 |
55 |
3-4.5-8 |
0.035" |
|
TB-32U-E55 |
≥3.2 |
2300 |
15-16.5-18 |
55 |
3-4.5-7 |
0.035" |
|
TB-32U-F55 |
≥3.2 |
2300 |
18-19-20 |
55 |
3-4.5-6 |
0.035" |
|
TB-28U-A80 |
≥2.8 |
2300 |
06-7-8 |
80 |
03-6-10 |
0.035" |
|
TB-28U-B80 |
≥2.8 |
2300 |
08-9-10 |
80 |
3-5.5-9 |
0.035" |
|
TB-28U-C80 |
≥2.8 |
2300 |
10-11-12 |
80 |
03-5-8 |
0.035" |
|
TB-28U-D80 |
≥2.8 |
2300 |
12-13.5-15 |
80 |
3-4.5-8 |
0.035" |
|
TB-32U-E80 |
≥3.2 |
2300 |
15-16.5-18 |
80 |
3-4.5-7 |
0.035" |
