Usage
● Stone removal in biliary tract,including biliary sludge and residual gallstone left in biliary tract after Mechanical Lithotripsy.
Characteristics
●The triple-lumen structure (for guidewire, injection, and inflation) enhances the ease and convenience of insertion and radiography procedures.
●Available in three distinct sizes for each balloon type, catering to the varied needs of different patients.

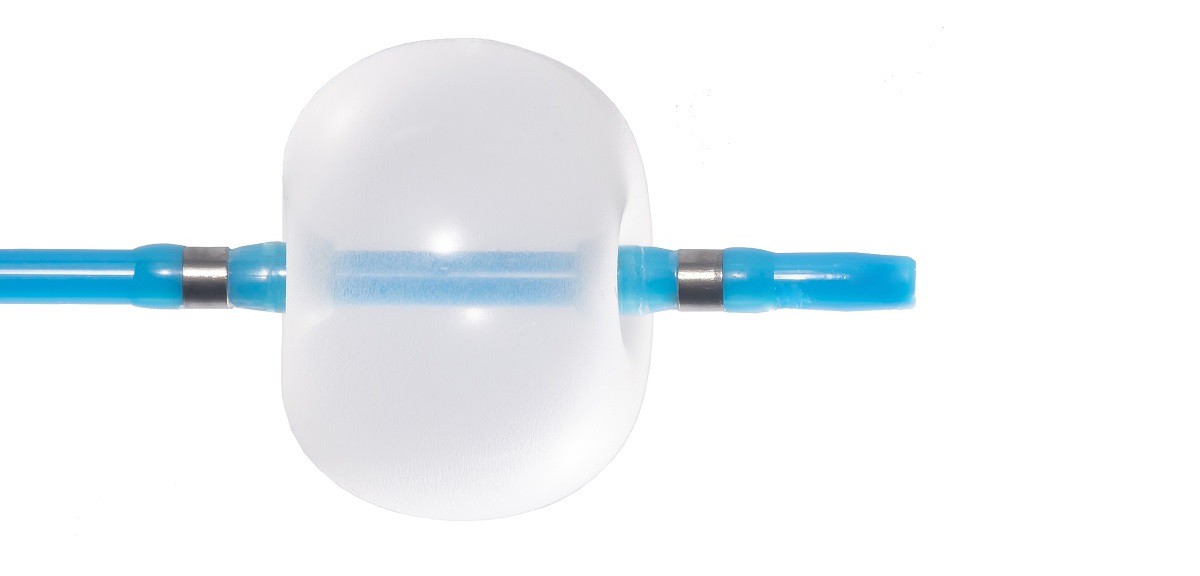

●Equipped with radiopaque markers at both ends of the balloon, facilitating precise positioning under X-ray.
●The unique tapered design of the catheter improves insertion into the papilla, ensuring smoother procedures
Specifications(Unit:mm)
Hydrojet is located at the distal end of the balloon
|
Model |
Working Channel |
Working Length |
Balloon O.D. |
Guide Wire |
Structure |
|
EB-32Q-3-A |
≥3.2 |
2000 |
8.5/12/15 |
0.035" |
3 Lumens |
|
EB-32Q-L-3-A |
≥3.2 |
2000 |
10/13/16 |
0.035" |
3 Lumens |
|
EB-32Q-XL-3-A |
≥3.2 |
2000 |
12/15/18 |
0.035" |
3 Lumens |
|
EB-32Q-RX-A |
≥3.2 |
2000 |
8.5/12/15 |
0.035" |
Rapid Exchange(RX) |
|
EB-32Q-L-RX-A |
≥3.2 |
2000 |
10/13/16 |
0.035" |
Rapid Exchange(RX) |
|
EB-32Q-XL-RX-A |
≥3.2 |
2000 |
12/15/18 |
0.035" |
Rapid Exchange(RX) |
Hydrojet is located near the balloon
|
Model |
Working Channel |
Working Length |
Balloon O.D. |
Guide Wire |
Structure |
|
EB-32Q-3-B |
≥3.2 |
2000 |
8.5/12/15 |
0.035" |
3 Lumens |
|
EB-32Q-L-3-B |
≥3.2 |
2000 |
10/13/16 |
0.035" |
3 Lumens |
|
EB-32Q-XL-3-B |
≥3.2 |
2000 |
12/15/18 |
0.035" |
3 Lumens |
|
EB-32Q-RX-B |
≥3.2 |
2000 |
8.5/12/15 |
0.035" |
Rapid Exchange(RX) |
|
EB-32Q-L-RX-B |
≥3.2 |
2000 |
10/13/16 |
0.035" |
Rapid Exchange(RX) |
|
EB-32Q-XL-RX-B |
≥3.2 |
2000 |
12/15/18 |
0.035" |
Rapid Exchange(RX) |
