Usage
● Stone removal in biliary tract,including biliary sludge and residual gallstone left in biliary tract after Mechanical Lithotripsy.
Characteristics

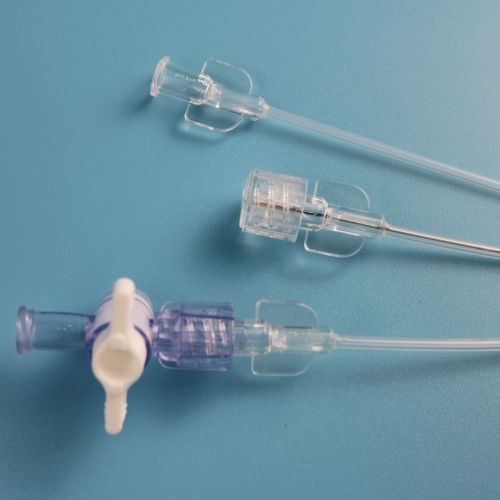

●The triple-lumen design (supporting guidewire, injection, and inflation functions) simplifies and streamlines insertion and radiography processes.
●The balloons come in three different sizes, ensuring compatibility with a wide range of patient anatomies and clinical needs.

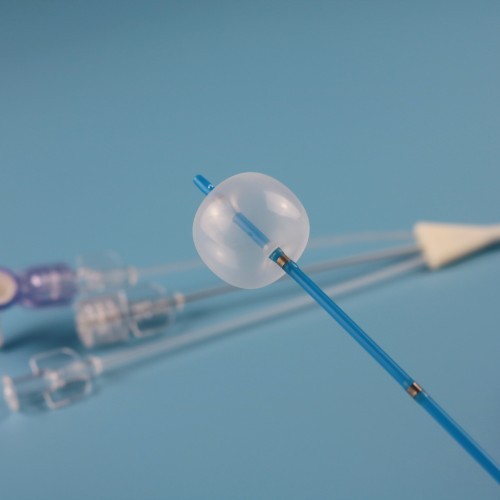

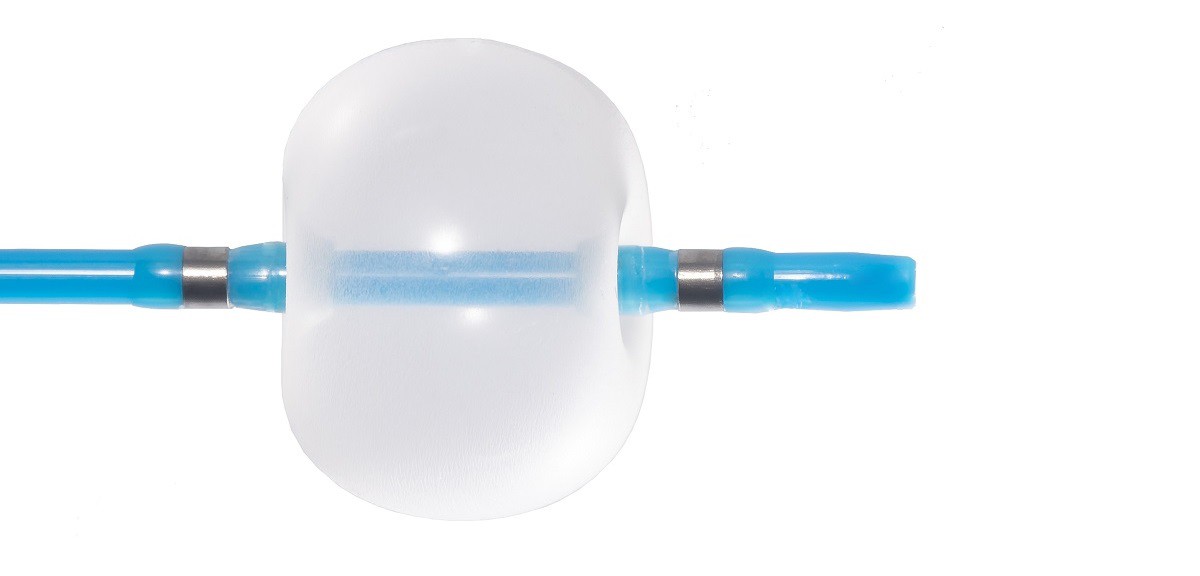

●The inclusion of radiopaque markers at both ends of the balloon enables accurate localization under X-ray, enhancing procedural accuracy.
●The uniquely tapered catheter design facilitates smoother and more precise insertion into the papilla.
Specifications(Unit:mm)
Hydrojet is located at the distal end of the balloon
|
Model |
Working Channel |
Working Length |
Balloon O.D. |
Guide Wire |
Structure |
|
EB-32Q-3-A |
≥3.2 |
2000 |
8.5/12/15 |
0.035" |
3 Lumens |
|
EB-32Q-L-3-A |
≥3.2 |
2000 |
10/13/16 |
0.035" |
3 Lumens |
|
EB-32Q-XL-3-A |
≥3.2 |
2000 |
12/15/18 |
0.035" |
3 Lumens |
|
EB-32Q-RX-A |
≥3.2 |
2000 |
8.5/12/15 |
0.035" |
Rapid Exchange(RX) |
|
EB-32Q-L-RX-A |
≥3.2 |
2000 |
10/13/16 |
0.035" |
Rapid Exchange(RX) |
|
EB-32Q-XL-RX-A |
≥3.2 |
2000 |
12/15/18 |
0.035" |
Rapid Exchange(RX) |
Hydrojet is located near the balloon
|
Model |
Working Channel |
Working Length |
Balloon O.D. |
Guide Wire |
Structure |
|
EB-32Q-3-B |
≥3.2 |
2000 |
8.5/12/15 |
0.035" |
3 Lumens |
|
EB-32Q-L-3-B |
≥3.2 |
2000 |
10/13/16 |
0.035" |
3 Lumens |
|
EB-32Q-XL-3-B |
≥3.2 |
2000 |
12/15/18 |
0.035" |
3 Lumens |
|
EB-32Q-RX-B |
≥3.2 |
2000 |
8.5/12/15 |
0.035" |
Rapid Exchange(RX) |
|
EB-32Q-L-RX-B |
≥3.2 |
2000 |
10/13/16 |
0.035" |
Rapid Exchange(RX) |
|
EB-32Q-XL-RX-B |
≥3.2 |
2000 |
12/15/18 |
0.035" |
Rapid Exchange(RX) |
