Usage
●It is suitable for adults and adolescents in the dilation operation of digestive tract stricture under endoscopes.
Characteristics

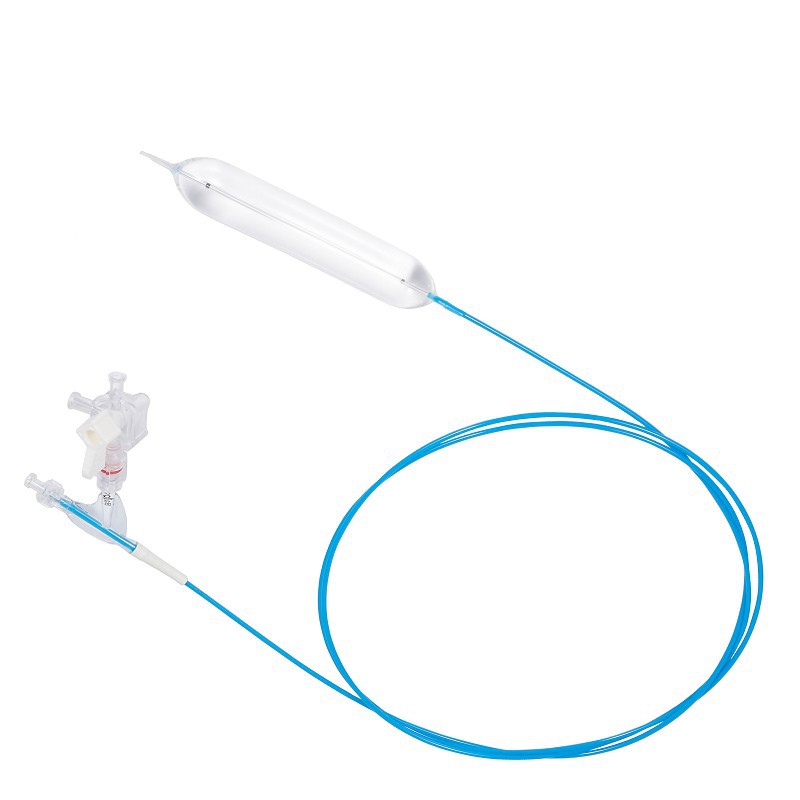

●This innovative balloon catheter offers three adjustable diameters under controlled pressure, ●providing physicians with enhanced flexibility during procedures.
Its elastic, soft-tip design ensures smooth insertion into target areas while minimizing tissue damage.
●The rapid drainage feature significantly reduces surgical time, improving overall efficiency. Constructed from high-quality imported materials, the device boasts exceptional pressure resistance and safe dilation capabilities.
●Post-multi-wing pleating, the thermostatic shaping process ensures superior resilience and smooth retraction from the working channel.
●The tube is optimally designed for smooth operation, excellent elasticity, and strong resistance to twisting, ensuring easier navigation.

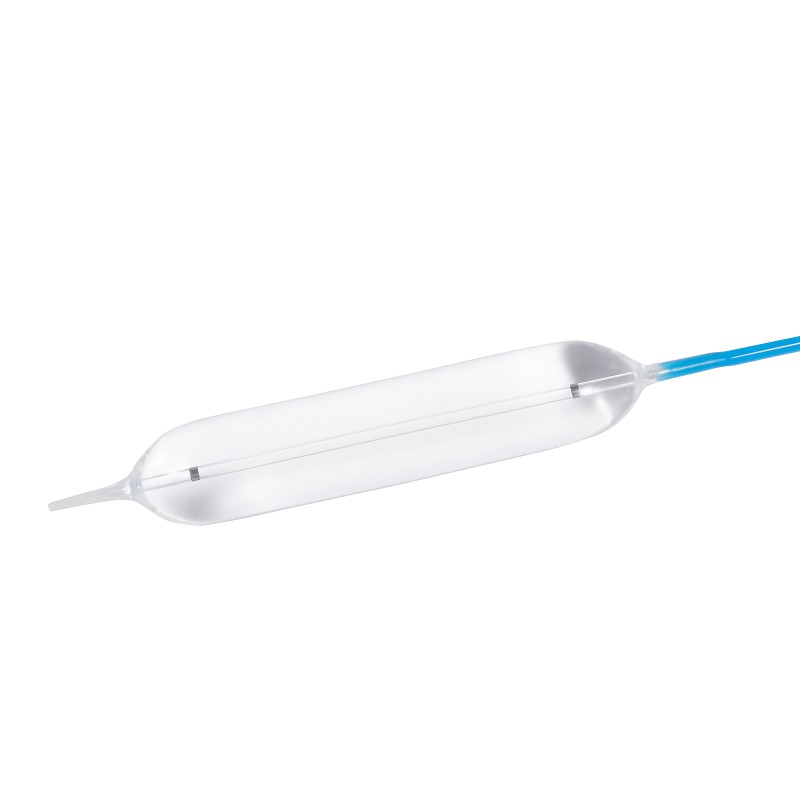

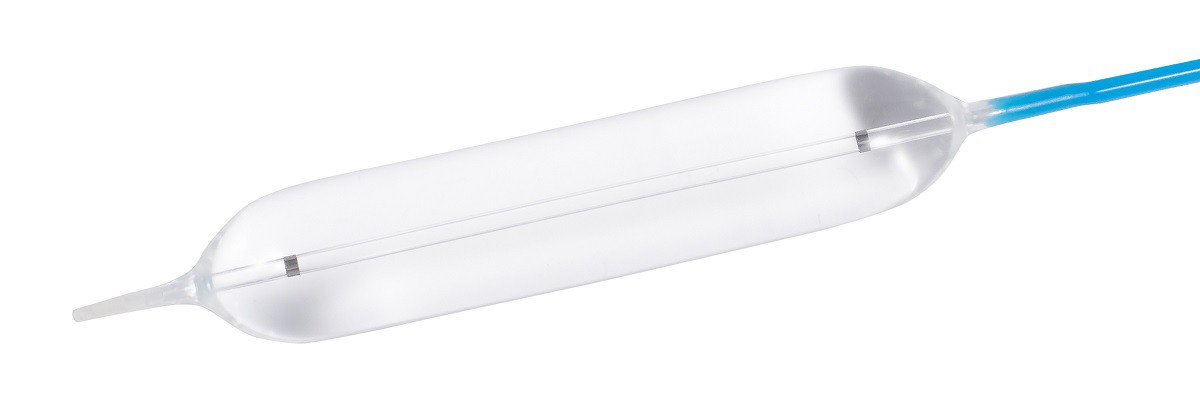

●Radiopaque markers at both ends enable precise positioning under X-ray imaging.
●The pre-inserted 0.035" guide wire, featuring a soft tip and length markings, simplifies the estimation of the internal guide wire length.
Specifications(Unit:mm)
For Esophagus/Pylorus/Colonic
|
Model |
Working Channel |
Working Length |
Balloon Diameter |
Balloon Length |
Guide Wire |
|
BD-28N-0640 |
≥2.8 |
1800 |
06 |
40 |
0.035" |
|
BD-28N-0840 |
≥2.8 |
1800 |
08 |
40 |
0.035" |
|
BD-28N-1040 |
≥2.8 |
1800 |
10 |
40 |
0.035" |
|
BD-28N-1260 |
≥2.8 |
1800 |
12 |
60 |
0.035" |
|
BD-28N-1460 |
≥2.8 |
1800 |
14 |
60 |
0.035" |
|
BD-28N-1680 |
≥2.8 |
1800 |
16 |
80 |
0.035" |
|
BD-28N-1880 |
≥2.8 |
1800 |
18 |
80 |
0.035" |
|
BD-32U-2060 |
≥3.2 |
2300 |
20 |
60 |
0.035" |
|
BD-32U-2080 |
≥3.2 |
2300 |
20 |
80 |
0.035" |
For biliarytract
|
Model |
Working Channel |
Working Length |
Balloon Diameter |
Balloon Length |
Guide Wire |
|
BD-28Q-0640 |
≥2.8 |
2000 |
06 |
40 |
0.035" |
|
BD-28Q-0840 |
≥2.8 |
2000 |
08 |
40 |
0.035" |
|
BD-28Q-1040 |
≥2.8 |
2000 |
10 |
40 |
0.035" |
|
BD-28Q-1260 |
≥2.8 |
2000 |
12 |
60 |
0.035" |
|
BD-28Q-1460 |
≥2.8 |
2000 |
14 |
60 |
0.035" |
For choledochofiberscope
|
Model |
Working Channel |
Working Length |
Balloon Diameter |
Balloon Length |
Guide Wire |
|
BD-20A-0640 |
≥2.0 |
900 |
06 |
40 |
0.032" |
|
BD-20A-0840 |
≥2.0 |
900 |
08 |
40 |
0.032" |
|
BD-20N-0640 |
≥2.0 |
1800 |
06 |
40 |
0.032" |
|
BD-20N-0840 |
≥2.0 |
1800 |
08 |
40 |
0.032" |
